1957 Broadmoor Production Order

[StudeMichael]

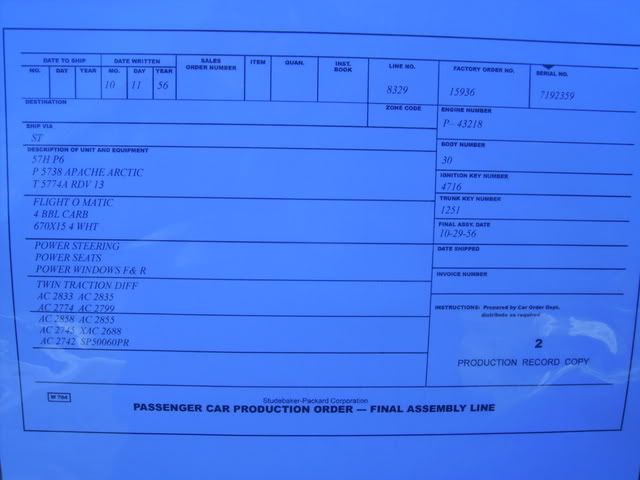

Can anyone help me figure out what the Ac #'s are on this wagon?

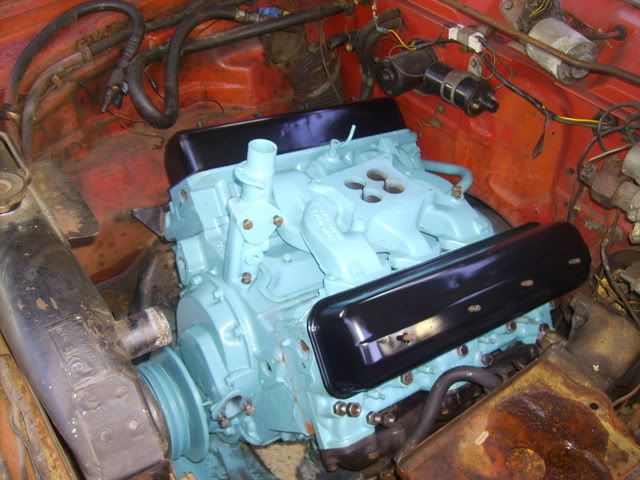

Just had the cylinder heads redone,,,this is far as I have gotten on the engine:





1957 Packard Clipper
1958 Golden Hawk
1963 Daytona Convertible
1963 R2 Daytona
1963 R2 GT Hawk
1963 R1 Wagonaire
1963 R4 Avanti
1964 Champ
1966 Cruiser

[BobPalma]

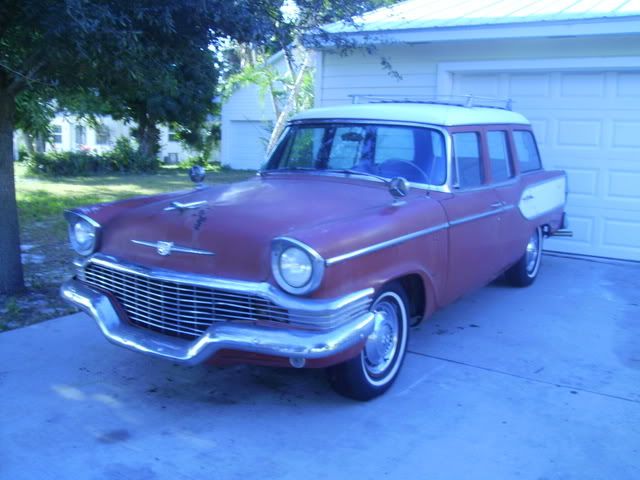

[] Wow, Michael; what a loaded wagon!

Here are a few numbers to get you started. (We have to leave to pick up our son at the airport for Christmas, so if no one else has posted in the interim, I'll look up more later):

AC2833: Climatizer
AC2774: Windshield Washer Kit
AC2745: Stratoline Automatic-Tuning Radio
ACX2688: Internally-controlled Radio Antenna (not installed)
SP50060pr: Front Seat Belt Kit, Gray
AC2742: Roof Luggage Carrier

BP

[StudeMichael]

I notice it says it has twin traction. Should it have a TT logo on the tail gate? Whoever the guy was that ordered this wagon was certainly not a C.A.S.O.

1957 Packard Clipper
1958 Golden Hawk
1963 Daytona Convertible
1963 R2 Daytona
1963 R2 GT Hawk
1963 R1 Wagonaire
1963 R4 Avanti
1964 Champ
1966 Cruiser

[Carl Purdy]

Hey Stude Michael. Would this happen to be a Colorado car?


7G-Q1 49 2R12 10G-F5 56B-D4 56B-F2
As soon as you find a product you like they will stop making it.

[StudeMichael]

I bought the car from Lee in Savannah GA. As far as I can tell it has been in GA most of it's life.

1957 Packard Clipper
1958 Golden Hawk
1963 Daytona Convertible
1963 R2 Daytona
1963 R2 GT Hawk
1963 R1 Wagonaire
1963 R4 Avanti
1964 Champ
1966 Cruiser

[StudeRich]

quote:Originally posted by StudeMichael

I notice it says it has twin traction. Should it have a TT logo on the tail gate?

Nope, none until 1958! [:0]

Edit: OPPS; I better add the never say never caveat: "Except for any special builds of late '57's or employee add-on's"!


StudeRich at Studebakers Northwest -Ferndale,WA

[mbstude]

It's lookin' good, Michael. Glad to see it finally getting worked on.

I knew that car had a BUNCH of options, if not every option available. [^] It has Air Conditioning also, though that could've been aftermarket or dealer added.

If it has been in GA all its life, it's been garaged for the most part of it. That wagon is pretty darn solid when compared to some other GA cars I know of...

Matthew Burnette
Hazlehurst, GA

[StudeMichael]

The build sheet does not mention that it has power brakes. Maybe they were added later. I wish that I had received a copy of the actual production order instead of a reproduction. Is that the way the museum is processing them now?

1957 Packard Clipper
1958 Golden Hawk
1963 Daytona Convertible
1963 R2 Daytona
1963 R2 GT Hawk
1963 R1 Wagonaire
1963 R4 Avanti
1964 Champ
1966 Cruiser

[BobPalma]

OK, Michael; here's the balance of the AC Options.

AC2799: Spoke-Type Wheel Covers
AC2858: Back-Up Lamp Kit
AC2855: Front Vertical Bumper Kit
AC2835: Electric Clock

Yes, that is one loaded wagon! I can't say that I've ever seen a 1950s Studebaker station wagon so heavily optioned from the factory. Good show. BP

[BobPalma]

quote:Originally posted by StudeMichael

The build sheet does not mention that it has power brakes. Maybe they were added later. I wish that I had received a copy of the actual production order instead of a reproduction. Is that the way the museum is processing them now?

Yes, but not to worry. They are taking extra care to be certain they are now correct when retyped... unlike, admittedly, years ago when lesser mortals were copying them. BP

[Dick Steinkamp]

Beautiful job detailing that engine []

Dick Steinkamp
Bellingham, WA

[IMG][/IMG]

[StudeRich]

quote:Originally posted by BobPalma

[] Wow, Michael; what a loaded wagon!

AC2833: Climatizer
AC2774: Windshield Washer Kit
AC2745: Stratoline Automatic-Tuning Radio
ACX2688: Internally-controlled Radio Antenna (not installed)
SP50060pr: Front Seat Belt Kit, Gray
AC2742: Roof Luggage Carrier

Add to Bob's list:

AC-2855 = Bumper Kit (must be front Guards) rumored to be standard on President! It must have just been almost always ORDERED.

AC-2858 = Back-Up Light Kit (Sockets, Wires, Bulbs and Switch only)

OH, Bob got back while I was typing this! [^]

[Studebaker Wheel]

Regarding the production orders: There are paper copies for all vehicles produced from 1960 thru 1966. These can be easily reproduced using a copy machine. Prior to that date they are all on microfilm so the information has to be transposed onto paper copies like the one you received for your wagon. Every few years Studebaker completely revised the production order forms. The style you have posted above with the data on your wagon was used from 1956 thru 1959. I created the blank form (above) for the museum's use by redoing an original that I had copied using a microfilm reader/printer. It required more than a few hours in Photoshop to completely redo it (I have also done other years). I can guarantee the form is correct though I cannot guarantee all of the options/accessories listed on it are correct!



Richard Quinn
editor: Antique Studebaker Review
