'54 Commander - How do the start switch and solenoid work?

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • #16
    Is your solenoid a metal body one? Yes? Don't do nothing. My 53 works just fine. I used a 53 solenoid and a auto trans 53 toggle. The def and heater motors can be replaced with Mustang 65-66 blower motors.

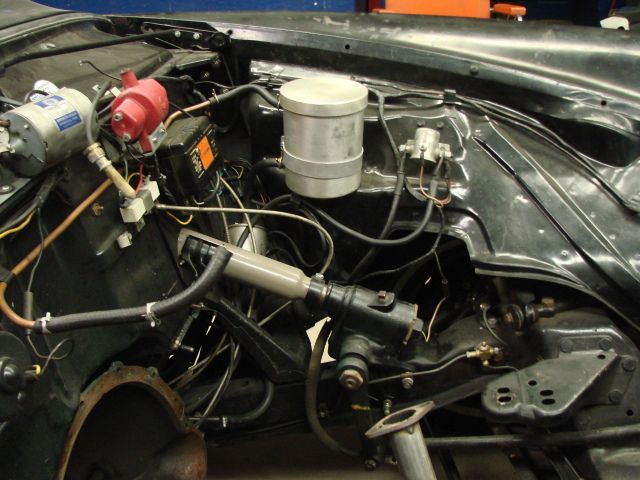

    Here's the solenoid. Is this like yours?

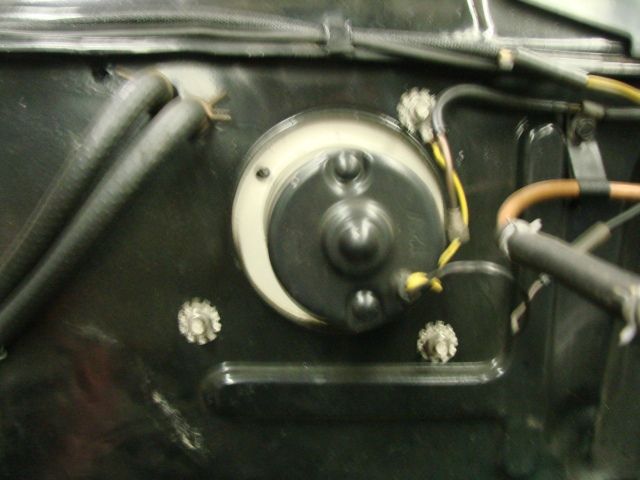

    Here's the def motor (sorry bad shot) It's looks like it belongs
    Last edited by Flashback; 01-02-2014, 03:43 PM.

    Comment


    • #17
      I wonder if you could use the stock 6V solenoid and just get your full 12V for starting off the big terminal on the starter side of the solenoid?
      Dick Steinkamp
      Bellingham, WA

      Comment


      • #18
        I just rewired the starter switch on my 54 when changing to 12 volts. It was pretty easy to remove the ground connection as I recall. It was not internal, but was an external solder joint to the case. This was 30 years ago, so my memory may be fuzzy, but it was pretty easy.
        RadioRoy, specializing in AM/FM conversions with auxiliary inputs for iPod/satellite/CD player. In the old car radio business since 1985.

        17A-S2 - 50 Commander convertible
        10G-C1 - 51 Champion starlight coupe
        10G-Q4 - 51 Champion business coupe
        4H-K5 - 53 Commander starliner hardtop
        5H-D5 - 54 Commander Conestoga wagon
        56B-D4 - 56 Commander station wagon
        60V-L6 - 60 Lark convertible

        Comment


        • #19
          It sounds as if there is more than one way to skin this cat. The car seemed to work fine before starting on the total rewire of the car, so, as several people suggested, it might make sense to stick with the same configuration with the new wiring and at least try it more to see whether problems occur. Right now, I'm part way through the rewire and testing things as the job moves along.

          Someone asked about the solenoid on the car. It is a metal body three wire solenoid, likely from a six volt system positive ground system, and it bolts to the inner fender near the battery. The voltage to the coil feeds from a separate circuit and is reduced by the ceramic reducer on the firewall.

          Fusing the main wires certainly is a good idea. The new harness included a 14 gauge fusible link that went into the 10 gauge battery wire that feeds the harness. I plan to add another fusible link to the 10 gauge wire that runs from the solenoid battery terminal to the ammeter. The fusible links, along with all the fuses in the new panel, should protect the system.

          And thanks for the tips on the heater/defroster motors. A seller on ebay had a '57 defroster unit, which I bought and am waiting for. So far I haven't been able to find a second one for the heater. As suggested, a Mustang unit might be the answer for the heater motor.

          Rewiring a car with a non-original harness is a good mental exercise. Today, I spent several (or more) hours making sense of the steering column, signal light, and brake wiring. To complicate matters, the replacement harness had a "factory error" that took a while to find.
          Last edited by northern; 01-02-2014, 07:21 PM.

          Comment


          • #20
            A similar fix to what Studerich is talking about. When I converted my 54 to 12 volts I wanted to keep the original toggle start switch. So I removed from the dash and used a Dremel tool to cut the tab on the switch that goes to ground. Now I have single pole single throw switch. Put 12 volts on one side. the other side to the neutral safety switch then to the single terminal on the solenoid.

            Comment


            • #21
              Originally posted by MPallock View Post
              A similar fix to what Studerich is talking about. When I converted my 54 to 12 volts I wanted to keep the original toggle start switch. So I removed from the dash and used a Dremel tool to cut the tab on the switch that goes to ground. Now I have single pole single throw switch. Put 12 volts on one side. the other side to the neutral safety switch then to the single terminal on the solenoid.
              Now we have the definitive answer

              Comment


              • #22
                Originally posted by MPallock View Post
                A similar fix to what Studerich is talking about. When I converted my 54 to 12 volts I wanted to keep the original toggle start switch. So I removed from the dash and used a Dremel tool to cut the tab on the switch that goes to ground. Now I have single pole single throw switch. Put 12 volts on one side. the other side to the neutral safety switch then to the single terminal on the solenoid.
                Not sure how that would work. The (presumably original) switch in my car only has one terminal, not two. Moving the switch grounds the hot wire to the car ground. If one isolates the switch body from the car body, moving the switch won't do anything. One would have to modify the switch somehow to add a second terminal.

                Comment


                • #23
                  Originally posted by northern View Post
                  Not sure how that would work. The (presumably original) switch in my car only has one terminal, not two. Moving the switch grounds the hot wire to the car ground. If one isolates the switch body from the car body, moving the switch won't do anything. One would have to modify the switch somehow to add a second terminal.
                  I think the key here is that the ground connection on the starter switch is NOT internal to the switch. You can actually see it on the rear of the switch. If you disconnect the ground connection and connect the remaining tab to +12 volts, the switch will provide +12 volts to the solenoid.

                  Again, I am going from memory, but it seems as if the ground connection to the switch case was obvious from looking at it and it was not difficult to disconnect that ground connection, and then connect it to +12 volts.

                  Maybe there are two different versions of the switch and yours is not like the ones the rest of us have described.
                  Last edited by RadioRoy; 01-03-2014, 05:49 PM.
                  RadioRoy, specializing in AM/FM conversions with auxiliary inputs for iPod/satellite/CD player. In the old car radio business since 1985.

                  17A-S2 - 50 Commander convertible
                  10G-C1 - 51 Champion starlight coupe
                  10G-Q4 - 51 Champion business coupe
                  4H-K5 - 53 Commander starliner hardtop
                  5H-D5 - 54 Commander Conestoga wagon
                  56B-D4 - 56 Commander station wagon
                  60V-L6 - 60 Lark convertible

                  Comment


                  • #24
                    There are many variations of these starter solenoids. They make look similar or identical but the internal wiring may be different. Your solenoid has the operating coil internally fed off the bat terminal and grounded using the small terminal. NAPA 6v#-ST53, 12v#-ST56 , Cole Hearse 12v#- 24115(metal),24077(plastic)

                    Comment


                    • #25
                      Originally posted by RadioRoy View Post
                      I think the key here is that the ground connection on the starter switch is NOT internal to the switch. You can actually see it on the rear of the switch. If you disconnect the ground connection and connect the remaining tab to +12 volts, the switch will provide +12 volts to the solenoid.

                      Again, I am going from memory, but it seems as if the ground connection to the switch case was obvious from looking at it and it was not difficult to disconnect that ground connection, and then connect it to +12 volts.

                      Maybe there are two different versions of the switch and yours is not like the ones the rest of us have described.
                      RadioRoy is correct

                      Mark

                      Comment


                      • #26
                        Originally posted by mmagic View Post
                        4 pole starter solinoid... NAPA number ECH ST81.. $23.20. Just bought one last week.
                        Wanted to add ST 81 is external fed coil with internal ground. The fourth terminal is ignition resistor by pass. There are many 4 terminal that have isolated coil(feed through one small terminal and grounded with the other with no resistor bypass. There are also five terminal with isolated coil and resistor bypass. You can find one to accommodate just about any way you desire to wire it.

                        Comment


                        • #27
                          Great thread.
                          Good header.
                          Quality info for now and in the future.
                          HTIH (Hope The Info Helps)

                          Jeff


                          Get your facts first, and then you can distort them as much as you please. Mark Twain



                          Note: SDC# 070190 (and earlier...)

                          Comment


                          • #28
                            Simply puT: Your solenoid grounds to activate, if it is original. Your toggle is a one terminal normally open. It grounds when toggled. A wire from switch to small terminal on solenoid. Bingo, No high tech
