  • Clutch/Torque Converter: Modified clutch pedal for hydraulic clutch

    Having switched my trans. in my 54C from automatic to T5 standard with SBC, I could not find a whole lot of information to install a hydraulic master/slave to operate the clutch. Here's what worked for me. The trans. swap was pretty much straight forward, rear mount was fabbed and welded to the 'bat wing' crossmember, hole was cut in the floor for the shifter, and I had to notch the crossmember that sits under the bell housing to clear the clutch fork because I used a bell housing from a 3rd gen. Camaro that clocks the whole transmission CCW.

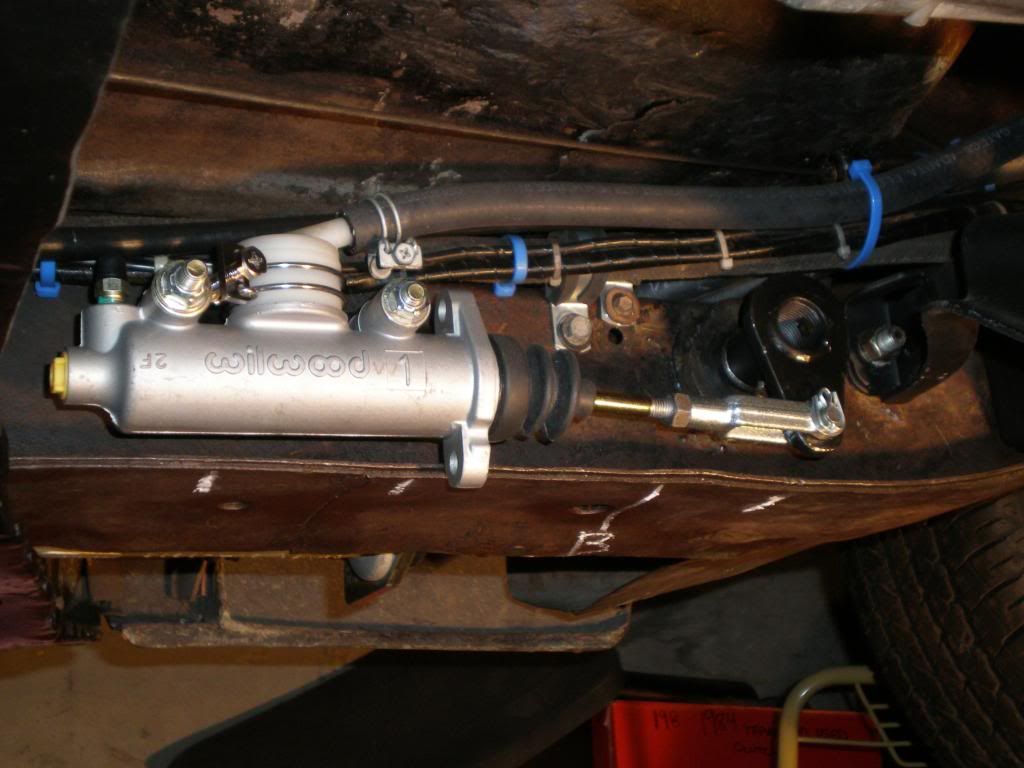

    I used a Wilwood 260-3378 remote master cylinder kit, 1" bore which is the same bore as the Camaro slave cylinder. This master cyl. is great because it gives 2 mounting options, either on the front or on the side. I chose side mount.

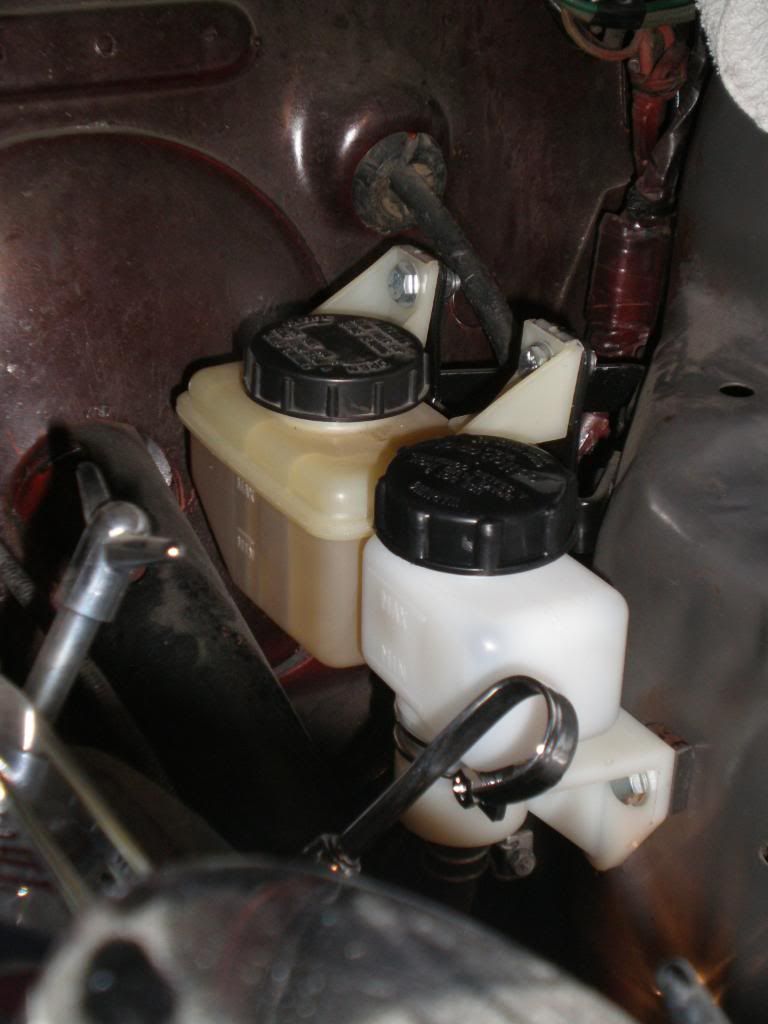

    I mounted the remote resevoir on the driver's side of the engine compartment beside my previously installed remote resevoir for the brakes.

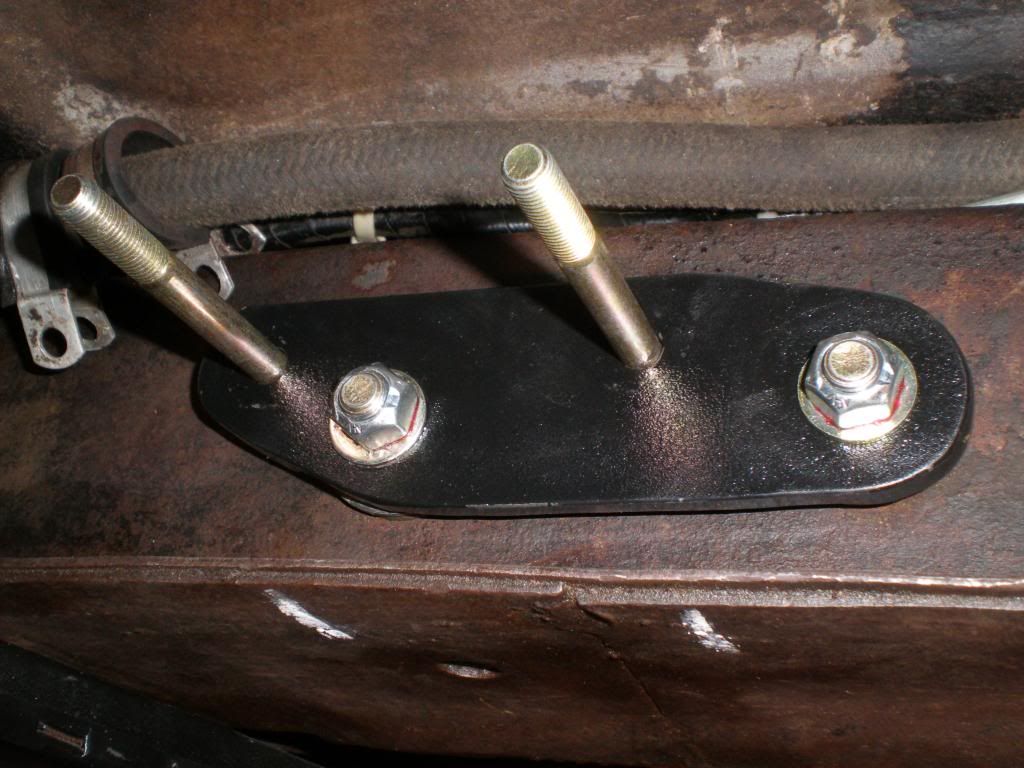

    I made a bracket out of 1/4" plate that bolts to the frame using the end of the bolts from the brake master cylinder bracket. There are a few large fender washers that stand the bracket off of the frame. There are tabs welded on the back side of the bracket to stop the heads of the clutch master cylinder bolts from spinning because you can't get a standard thickness wrench behind the bracket.

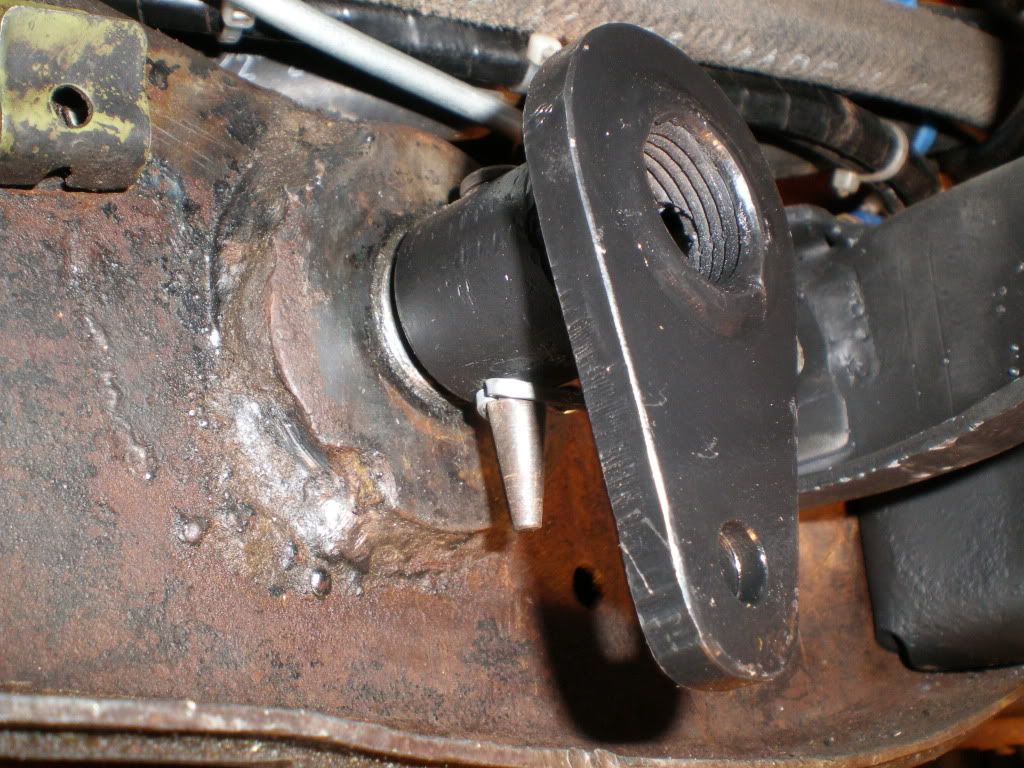

    I made a lever arm from 1/4" plate and welded it to the stock Stude swivel...guess I could have welded it directly to the pedal shaft, but I wanted it to be easy to R&R incase I needed to change the length of the arm. The length of the arm from hole center to hole center is 40mm, that gives me the 17mm of master cylinder piston travel that I needed, plus a couple of mm for clutch pedal travel from the floor of the car. Clutch take-up is progressive, extremely smooth, a little on the heavy side but still way less leg force required than to say stop the car with manual brakes. I was in rush hour traffic with it and had no problem with 2 billion start n' stops it took me to get home. lol.



    The biggest problem I ran into was the stupid plastic hose/aluminum fitting that goes into the stock GM slave cylinder and is held in place with a roll pin. I had no idea how I was going to interface that with a standard double flair steel line that I was planning on running from the master cyl. After some searching, here is the slick solution. This adapter fitting is intended for Chrysler/Jeep products, but if you turn down the part of the fitting that retains the seal, it slips right into the GM slave cylinder. The GM fitting has no lip to retain the seal. See measurements and part # in photo. I've been told that Macleod Clutches makes the same fitting, but it's twice the cost. I looked on their website, but couldn't find such a part. The Russell fittings were $22 a pair, not cheap but what's a guy to do? I use an AN#3 hose with 2 female fittings. With the master cylinder kit, Wilwood provides 2 fittings, a standard 3/16 inverted flare, or male AN#3.

    Hope this helps others with some ideas. Regards...Junior
